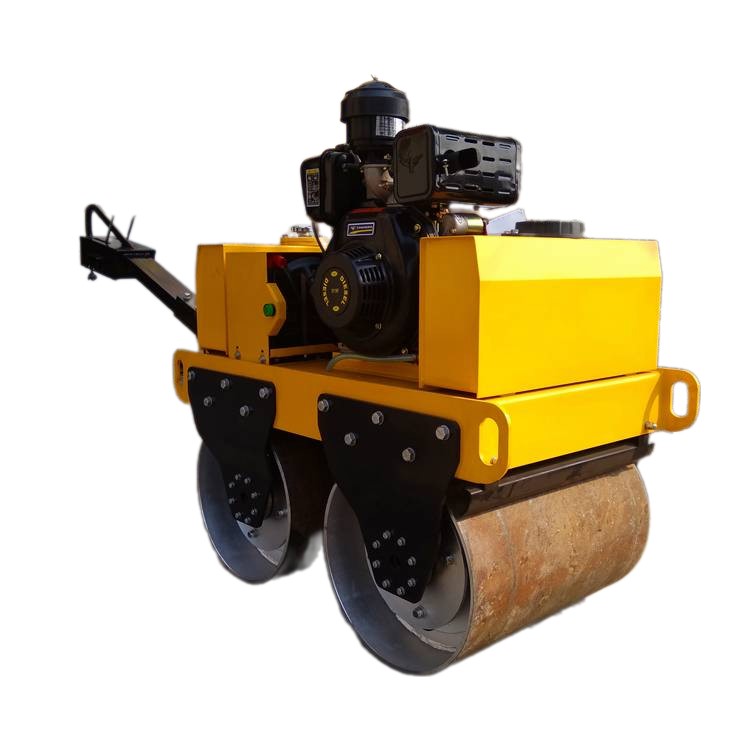

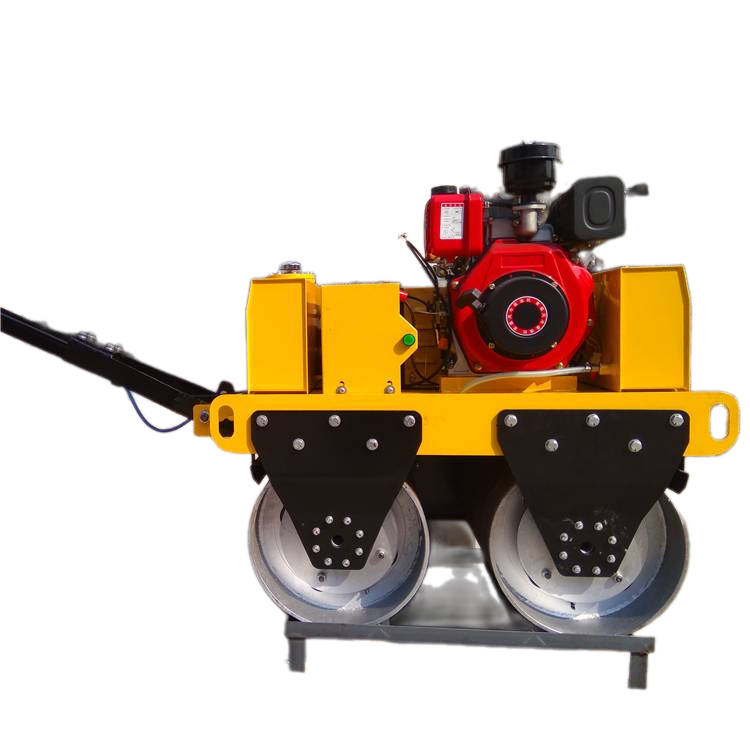

BECO Walk-Behind Road Roller Gasoline Engine

BECO Walk-Behind Road Roller Gasoline Engine. Used for conditioning soil surfaces and compacting soil layers to level the ground. Choose BECO walk-behind road rollers for effective soil surface conditioning and a comfortable work experience!


BECO Walk-Behind Road Roller Gasoline Engine

Used for conditioning soil surfaces and compacting soil layers to level the ground


Choose BECO walk-behind road rollers for effective soil surface conditioning and a comfortable work experience!

BECO Walk-Behind Road Roller Gasoline Engine
BECO Walk-Behind Road Roller Gasoline Engine


  • Pressure distribution: Full force pressure distribution enhances work efficiency.
  • Steel roller wheels: Diameter of 43 cm and width of 60 cm.
  • Four-directional movement control: Increases maneuverability.
  • Steel frame around the engine: Protects the engine from impacts, ensuring reliability.
  • Hydraulic system: Allows forward and reverse movement effortlessly, just follow along.
  • Mechanical wheel vibration system: Improves compaction efficiency.
  • Suitable for narrow spaces: Can maneuver into tight spots and compact soil at the edges or near walls without causing soil edge breakage or wall impact.
  • Versatile usage: Can compact both dry and wet surfaces, equipped with an in-built water tank for wheel sprinkling.
  • 1-year warranty: Ensures reliability.
  • Free nationwide delivery: Includes usage guidance in Bangkok and surrounding areas.
  • Foldable arm: Convenient for storage and transportation.
  • Gasoline engine: High performance and durable.
  • Starting mechanism: Can be started with a key or manually.

Video: BECO Walk-Behind Road Roller Gasoline Engine

Technical Specifications

  • Length of the road roller: 2,480 mm
  • Width: 788 mm
  • Height: 1,820 mm
  • Number of rollers: 2 rollers
  • Roller size (front-rear): 326 x 600 mm
  • Transmission system: Hydraulic
  • Travel speed: 0-3.8 km/h
  • Vibration: 3,600 times/min
  • Climbing ability: 30 degrees
  • Vibration frequency: 70 Hz
  • Vibration amplitude: 0.6 mm Impact force: 20 KN (2.0 TON)
  • Water tank capacity: 20 liters
  • Hydraulic oil tank capacity: 18 liters
  • Fuel tank capacity: 5.9 liters
  • Engine oil tank capacity: 1.1 liters
รถบดดิน รถบดถนน เครื่องตบดิน BECO
BECO Walk-Behind Road Roller Gasoline Engine


Pro Power for Solid Work with BECO Soil Compactor

Ground preparation is the foundation of all types of construction work. If you start with well-compacted soil, the area can support weight well and is less likely to settle. The BECO Soil Compactor is the powerful assistant that makes all this possible.

New Technology in Soil Compaction

In the past, building roads or preparing soil before constructing buildings required large, expensive machinery. Today, we’ve scaled down the size of the large soil compactors to make them smaller and more convenient to use in tight spaces.

If you don’t need to compact large areas or long roads, the BECO Soil Compactor is the ideal choice to help you finish your job professionally and quickly.

Designed for Ease of Use

The BECO Soil Compactor is designed for ease of use and to meet your needs. The control arms and levers are designed for easy operation. The control arm is long enough to fit your grip proportionately and features a single-handle design that makes turning easy. Walking while compacting the soil follows the natural movement of the body, reducing fatigue and effort. The two levers are easy to operate: the right lever for forward and reverse movement, and the left lever for stop and vibration. The BECO Soil Compactor also has a key start system, but if you prefer manual start by pulling the rope, you can do that too.

Capability for Both Dry and Wet Compaction

The BECO Soil Compactor can perform both dry and wet compaction. It comes with a built-in water tank and water nozzles for both the front and rear rollers. It is suitable for wet compaction, such as hot asphalt, to prevent it from sticking to the rollers or washing away soil debris while compacting moist soil. Additionally, it helps reduce dust while compacting by using water.

Faster Work with Two Rollers

The BECO Soil Compactor features two rollers, doubling the work speed. As you compact the soil, the front roller passes over the soil first, and the rear roller compacts it again. This is faster compared to plate or jumping compactors that need to go over the same area multiple times. The BECO Soil Compactor is convenient and quick with large rollers that roll and vibrate simultaneously, moving without much effort. You can also re-compact specific spots by moving forward and backward over the same area. Hand lever control makes the operation less strenuous for the worker.

Strong and Durable Power Transmission System

The forward and reverse movement of the BECO Soil Compactor, combined with its substantial weight, requires a robust power transmission system to navigate rough and uneven terrain. It uses chains to transfer power from the hydraulic pump to both rollers. The advantages of chains are their strength and high torque. They also provide protection by breaking if excessive force is applied, protecting the engine. The vibration system uses direct power from the engine to drive the mechanical system in the rollers, generating vibrations. The weight of the vehicle is used to transmit vibration force to the soil under the rollers during movement, ensuring your work is completed efficiently.

Durable and Long-lasting for Heavy Use

The BECO Soil Compactor not only offers excellent performance but also durability for long-term heavy use. Its hydraulic power transmission and chain-driven movement enhance mobility efficiency. The mechanical vibration system works harmoniously and efficiently. Every component is designed to allow you to focus entirely on your work. With BECO, your job will be completed smoothly and with maximum efficiency.

Compact and Maneuverable

The BECO walk-behind road roller is compact, with steel wheels that are only 60 cm wide but over 10 mm thick, allowing it to access tight construction areas where larger compactors cannot reach. It can pass through most doorways, making it suitable for indoor soil compaction as well.

The BECO walk-behind soil compactor is used for compacting soil or replacing larger ride-on compactors in narrow, hard-to-reach areas. Whether it’s compacting road edges, narrow gaps, or around cement pond edges, it handles it all. From gas station lots to village alleyways, there’s no problem. It provides firm compaction with its two large vibrating rollers, similar to larger compactors but with reduced weight and size, enabling it to compact narrow areas quickly and smoothly.

Portable and Convenient for Any Location

The BECO Soil Compactor can be transported on the back of a pickup truck, making it ready for work anywhere, anytime. It is portable and can be taken to any location for soil compaction, as it can be transported using a 4-door pickup truck. It features lifting points at four corners for crane or boom truck use.

Choose BECO to Stay Focused on Your Work, Ready for Use Anytime, Anywhere!
